Silica Sand filter
When the water through the machine, it machine will stop suspend substance through the good quality silica sand. and also protect the following machines and also clean the water this machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine also.
Active carbon filter
This equipment can clear away heterochrosis and off-favor from the water and can remove heavy metal such as mercury,lead,cadmium,zink iron,maganese and hromium and hydrogenate,sulphide and so on.It also could remove hydride,sulfuret and so on macromolecular compound ,then make the water asepsis and sans taste.we could use manual working vlave to finish reverse washing.
with the Vulcanized rubber(thickness 3mm) ,it can prevent of corrossion
This machine is made of stainless steel as a small tank which contains precision filter membrane, cut-off mechanical impurities and particles greater than 5μM leaks from preposing equipment and pipeline

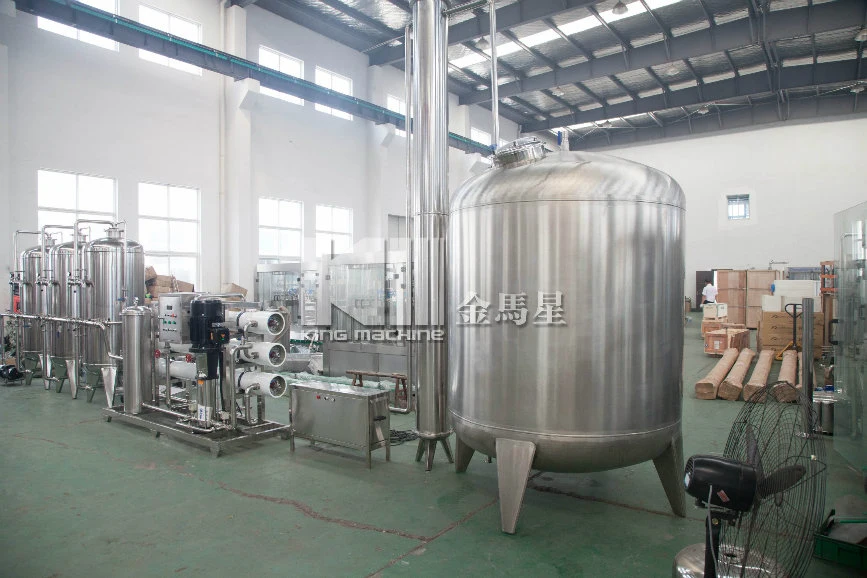

The device's key part is reverse osmosis membranes that is from the America, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it's easy to handle for its simple structure. The source water, in the case that the conductivity is less than 500us/CM, can reach the national standards totally after treatment by this device, it's the most ideal equipment for water treatment.
RO:reverse osmosis selected Dow aromatic polyamide membrane BW30-365 and supporting material of glass fiber reinforced plastic pressure vessels dedicated RO membrane element 18, sub-3 installed in pressure vessel, the installation water production quantity is 20.0m3 / h , water recovery rate is 70%, desalination rate is 97%
UV sterilizer machine
The products adopt a high-intensity, long-lived UV germicidal lamp, the device is reasonable, compact, and adopts the structure of secondary disinfection, so health indicators completely according to the state standard.
Four connections installed on the ozone generator: air inlet:/Ozone outlet/chilling water inlet/chilling water outlet
1.Mineral Water/Pure Water Filling Production Line
2.Carbonated Drink Filling Production Line
3.Juice(with pulp)/Tea Drink Filling Production Line
4.3/5 Gallon Barrel Water Filling Production Line
5.Semi-auotomatic/Full-automatic PET Bottle Blowing Machine
6.Water treatment,Bottle Unscrambler,Sterlizer and all kinds of auxiliary equipment.
Profession in handling all kind of beverage line turnkey project!
