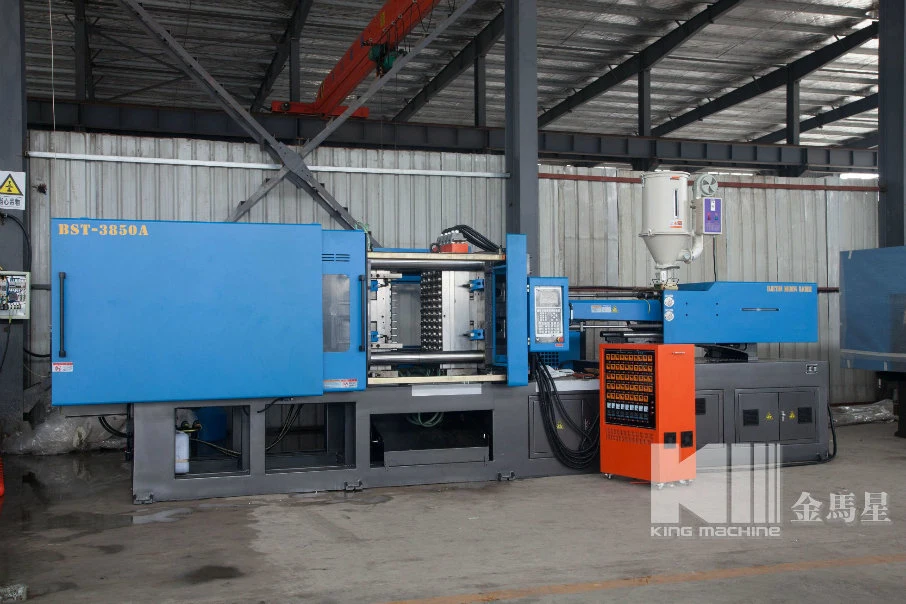

Full Automatic Plastic Injection Making Machine
Product Description
Pet Preform Injection Machine For Bottle Preform / Capsule / Tube / Cap
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
Specification
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production
2.Centralized lubrication, reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3.Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4.Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.
5.New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6.Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7.Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8.New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9.Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder, pressure transducer and servo amplifier to get system closed-loop control.
Product Detail
Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision. The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators' safety.

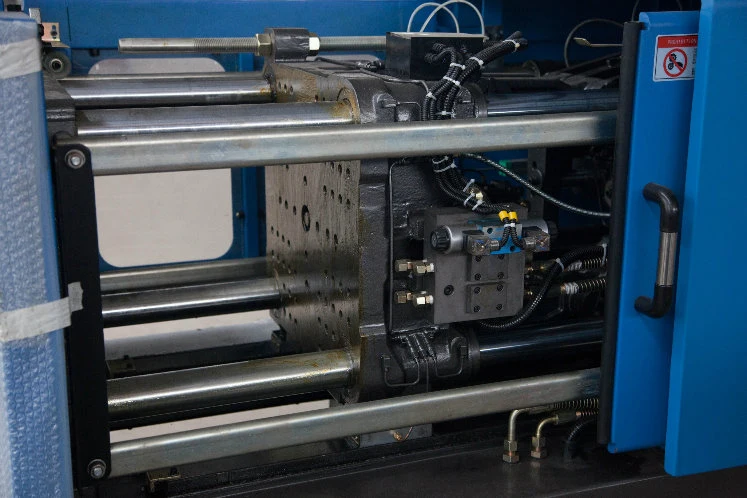

CLAMPING UNIT
1.The design of equipment is logical, easily operation.
2.The automatic level is very high, the wage is very little.
3.Using famous imported hydraulic, electrical, sealing parts, the trouble is low.
4.No matter what the product's outside or inside, they can get the best guarantee, the good products rate can be above 99%
5 LCD computer control with big display screen
6 Hydraulic double proportional valve
7 Hard chrome plated high tensile strength steel tie bars
8 Generous space for fitting large moulds
9 Large opening stroke
10 Two position transducers to control Clamping and Injection
11 Four stages of injecting, independent velocity and pressure control
CONTROL UNIT
12 Hydraulic mould height adjustment device
13 Screw cold-start prevention device
14 Melt decompression control
15 Screw back pressure control
16 Multiple hydraulic ejection
17 Differential high speed clamping
18 Centralized lubrication system
19 Low pressure mould protection device
20 Mechanical safety interlock
21 Double electrical safety interlock
22 Oil return filter
23 Oil tank with inner stainless steel container

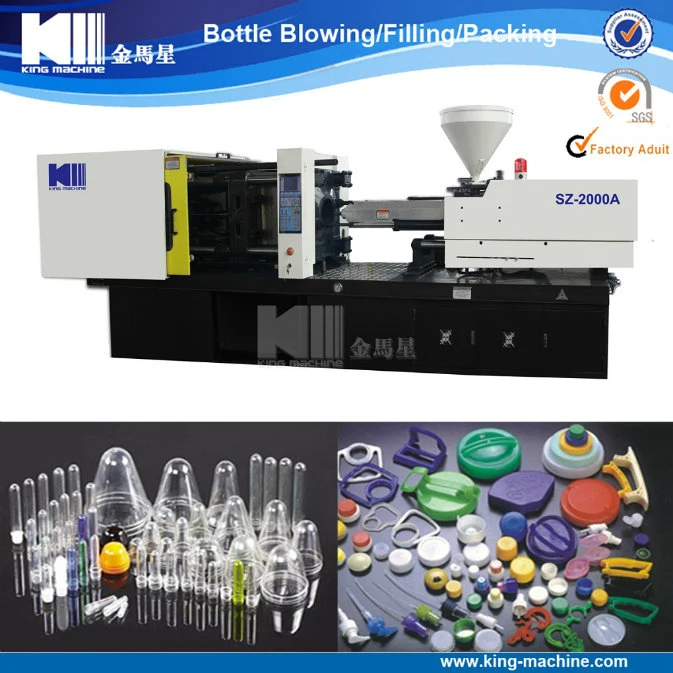

Application
We can produce various kinds of injection moulding machine and different kinds of mould according to customer's requirement ,especially.

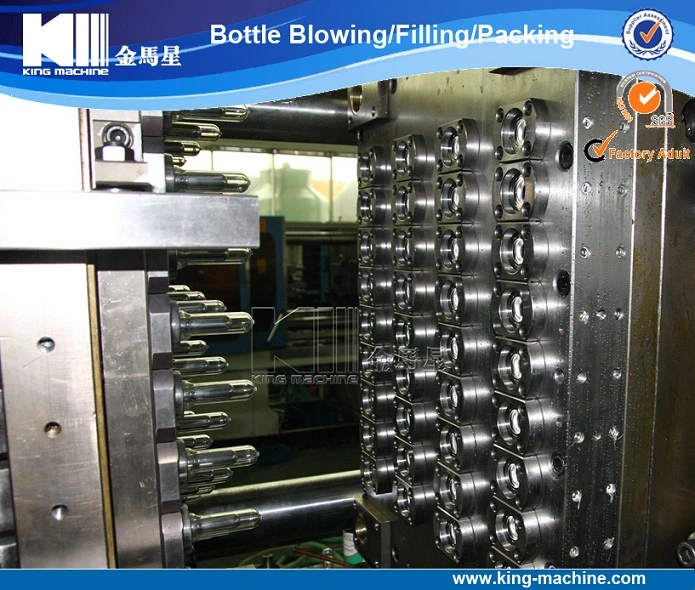

1.Mineral water bottle peform mould
2.Beverage bottle cap mould
3.5gallon cap mould
4.Theft poof, shampoo, oil, and sport cap mould
5.Cosmetics cap and wine mould
6.Box crane mould pvc fitting and switch mould and spoon fork and other mould
Packaging & Shipping
Zhangjiagang King Machine Co., Ltd.Is a group company located in Zhangjiagang city, we have more than 15years experiences on beverage machinery and plastic machines.
We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.
Our Main products including:Mineral water and purified water producing line.Carbonated beverage producing line.3 gallons& 5gallons producing line.Flat and tube UHT device, and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Our Main Products Likes:
1000-15000bph water productione line
1000-15000bph juice production complete line
1000-15000bph carbonated drink production line
1000-15000bph wine bottling line
1000-9000cph canning line
1000-6000cph Oil filling line
5gallon bottle filling line
Stand alone machines also available
Welcome Customers Visit Our Company.
King Machine
Standardized workshop of total 21,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
King Machine
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Contact us if you need more details on Cap Injection Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plastic Cap Injection Machine、Plastic Injection Moulding Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
Specification
| Model | Clamping force (KN) | Mold thickness (mm) | Tie-bars space(mm) | Heat power (KW) | Oil pump motor power(KW) | Dimension (mm) | Weight (KGS) |
| KM-1000A | 1000 | 150-400 | 385x350 | 7.6 | 11 | 4300x1500x1600 | 3400 |
| KM-1320A | 1320 | 150-420 | 410x375 | 8.2 | 13 | 4500X1600X1700 | 3900 |
| KM-1400A | 1400 | 150-420 | 428X386 | 8.2 | 13 | 4800X1600X1700 | 4200 |
| KM-1650A | 1650 | 170-440 | 455X425 | 8.2 | 15 | 5000X1600X1700 | 5000 |
| KM-1800A | 1800 | 180-470 | 480X460 | 11 | 15 | 5300X1600X1750 | 5500 |
| KM-2050A | 2050 | 190-470 | 490X464 | 11.6 | 17 | 5400X1600X1750 | 6000 |
| KM-2300A | 2300 | 200-510 | 510X510 | 11.6 | 18.5 | 5700X1800X2000 | 6500 |
| KM-2600A | 2600 | 200-550 | 554X554 | 15.5 | 25 | 6100X1700X1800 | 8000 |
| KM-3000A | 3000 | 220-600 | 580X580 | 15.5 | 25 | 6500X1800X1800 | 9000 |
| KM-3400A | 3400 | 270-650 | 640X640 | 17.5 | 30 | 6700X2000X1900 | 10800 |
| KM-3850A | 3850 | 280-680 | 680X680 | 17.5 | 30 | 7000X2200X2000 | 11500 |
| KM-4500A | 4500 | 280-710 | 720X720 | 20.5 | 37 | 7300X2300X2400 | 13800 |
| KM-4800A | 4800 | 280-750 | 750X720 | 23.4 | 15+25 | 8300X2200X2200 | 16300 |
| KM-5200A | 5200 | 290-780 | 770X740 | 28.1 | 18.5+25 | 8600X2200X2250 | 20000 |
| KM-5800A | 5800 | 290-810 | 800X774 | 28.1 | 18.5+30 | 8750X2200X2300 | 21800 |
| KM-6500A | 6500 | 350-860 | 860X819 | 37.1 | 25+30 | 9200X2200X2400 | 26000 |
| KM-7500A | 7500 | 400-960 | 961X961 | 40.9 | 30+37 | 10700X2300X2700 | 38000 |
| KM-8500A | 8500 | 400-980 | 1016X980 | 42.5 | 37+37 | 11000X2400X2750 | 45000 |
| KM-11000A | 11000 | 500-1150 | 1230X1105 | 63 | 128 | 14000X2900X4100 | 63000 |
| KM-13000A | 13000 | 600-1400 | 1350X1280 | 85.25 | 160 | 13200X3100X3600 | 76000 |
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production
2.Centralized lubrication, reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3.Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4.Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.
5.New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6.Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7.Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8.New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9.Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder, pressure transducer and servo amplifier to get system closed-loop control.
Product Detail
Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision. The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators' safety.
| NO. | Parts Name | Brand | Origin |
| 1 | Hydraulic Motor | DAN DUN | Italy-China |
| 2 | Hydraulic Oil Pump | HIGH-TECH | Made in Taiwan |
| 3 | Proportional Hydraulic Valve | HUAYE | Made in China |
| 4 | Transducer | Gefran | Made in Italy |
| 5 | Sealing Rings | HALLITE | Made in USA |
| 6 | Reversal Hydraulic Valve | SUNNY | Made in USA |
| 7 | High-pressure Vitta | Barthez | Made in Portugal |
| 8 | Contactor | LG | Made in Korea |
| 9 | Air-break Switch | LG | Made in Korea |
| 10 | Computer | TECHMATION | Made in Taiwan |
| 11 | Limit Switch | OMRON | Made in China |
| 12 | Proximity Switch | SCHNEIDER | Made in China |
CLAMPING UNIT
1.The design of equipment is logical, easily operation.
2.The automatic level is very high, the wage is very little.
3.Using famous imported hydraulic, electrical, sealing parts, the trouble is low.
4.No matter what the product's outside or inside, they can get the best guarantee, the good products rate can be above 99%
5 LCD computer control with big display screen
6 Hydraulic double proportional valve
7 Hard chrome plated high tensile strength steel tie bars
8 Generous space for fitting large moulds
9 Large opening stroke
10 Two position transducers to control Clamping and Injection
11 Four stages of injecting, independent velocity and pressure control
CONTROL UNIT
12 Hydraulic mould height adjustment device
13 Screw cold-start prevention device
14 Melt decompression control
15 Screw back pressure control
16 Multiple hydraulic ejection
17 Differential high speed clamping
18 Centralized lubrication system
19 Low pressure mould protection device
20 Mechanical safety interlock
21 Double electrical safety interlock
22 Oil return filter
23 Oil tank with inner stainless steel container
Application
We can produce various kinds of injection moulding machine and different kinds of mould according to customer's requirement ,especially.
1.Mineral water bottle peform mould
2.Beverage bottle cap mould
3.5gallon cap mould
4.Theft poof, shampoo, oil, and sport cap mould
5.Cosmetics cap and wine mould
6.Box crane mould pvc fitting and switch mould and spoon fork and other mould
Packaging & Shipping
Zhangjiagang King Machine Co., Ltd.Is a group company located in Zhangjiagang city, we have more than 15years experiences on beverage machinery and plastic machines.
We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.
Our Main products including:Mineral water and purified water producing line.Carbonated beverage producing line.3 gallons& 5gallons producing line.Flat and tube UHT device, and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Our Main Products Likes:
1000-15000bph water productione line
1000-15000bph juice production complete line
1000-15000bph carbonated drink production line
1000-15000bph wine bottling line
1000-9000cph canning line
1000-6000cph Oil filling line
5gallon bottle filling line
Stand alone machines also available
Welcome Customers Visit Our Company.
King Machine
Standardized workshop of total 21,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
King Machine
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Contact us if you need more details on Cap Injection Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plastic Cap Injection Machine、Plastic Injection Moulding Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : injection molding machine
Premium Related Products
Other Products
Hot Products
Ointment Tube Filling MachineMultipurpose Filling Machine Honey Filling Machine Cream Filling MachineHX-009 The Plastic Tubes And Plastic-Aluminum Laminated Tubes Filling And Sealing MachineHX-003 Top Sale Cosmetic Tube Ultrasonic Sealing MachineAutomatic Mask Filling Sealing MachineHorizontal Automatic Flow Hard Candy Packing MachineHengxing Semi-Automatic Shrinking Packing MachineNew Paper Card and Plastic Blister Packaging Machineryhigh frequency pvc welding machine priceHigh Speed Automatic Plastic Blister Vacuum Forming Machine for PVC/PET/PS/PE/PP, CE ApprovedCool design welding machine price for Electronic ProductsSmall Size Semi-Automatic Cosmetic Tail Plastic Tube Sealer MachinePlastic egg tray forming machine with Factory price top qualityHigh Speed Automatic Soft Tube Filling and Sealing MachineBest Price Automatic Soft Tube Filling & Sealing Machine, Toothpaste Tube Filling Machine, Cream Filling and Sealing MachineAutomatic Tube Filling Sealing Machine HX-006
