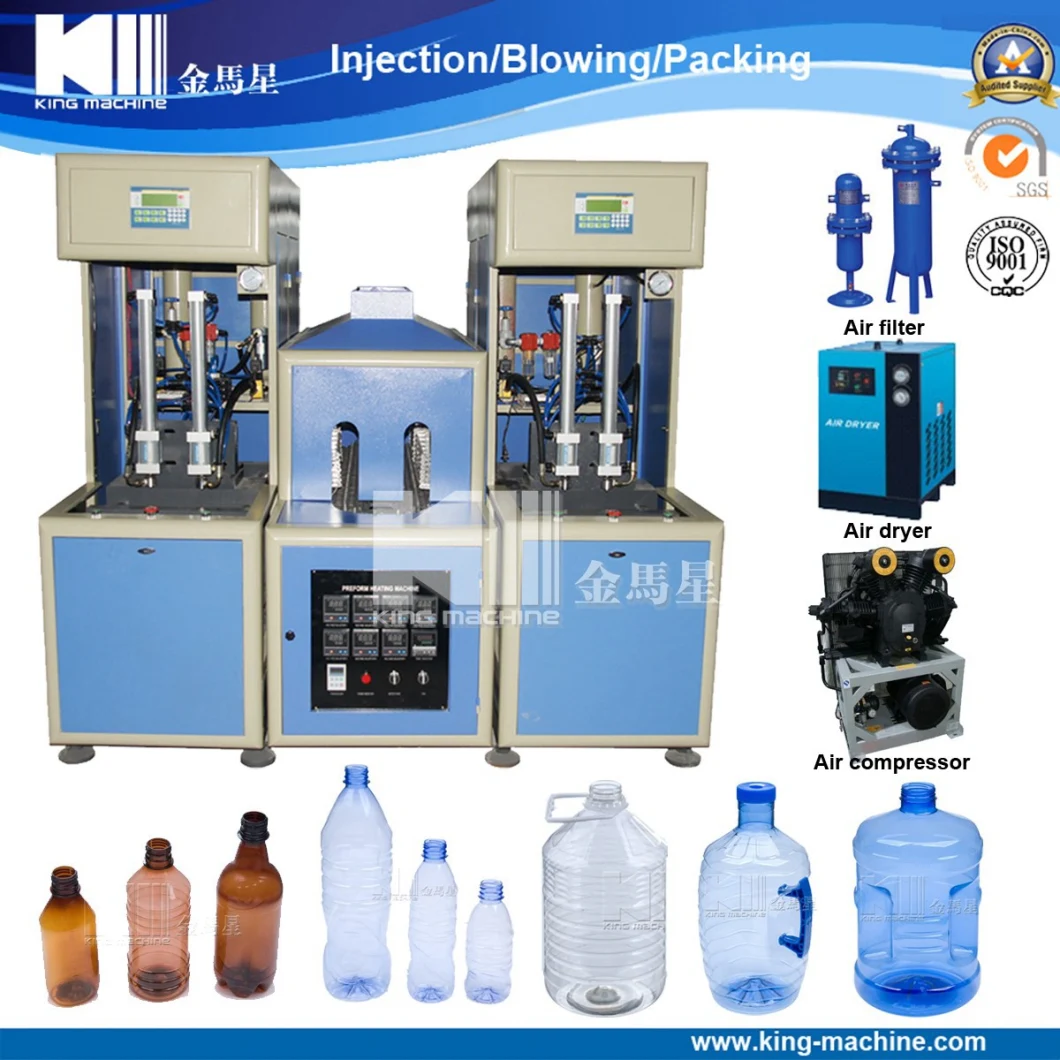

Semi-automatic PET Bottle Blowing Machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers
|Preform inner diameter||φ5mm-38mm|
|Moulding||Max.mould plate Dimenstion(L x W)||350x380mm|
|Mould opening stroke||160mm|
|Machine size and weight||Main machine (L x W x H)||160x60x161KM|
|Main machine weight||500Kg|
|Heater (L x W x H)||187x63x145KM|
We will provide whole drawing for bottle mould. Free charge for design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. The buyer pays the round air tickets and 70usd as salary per person per day.
30 days upon deposit and approval to the bottle drawing.
For machine: 30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% will be paid before shipmment.
We response for 12 months warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client's company, help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.
IX. After sales service:
We will solve the problem by phone first ,and send the spare parts by DHL,Or if you need engineer in your factory ,you need pay travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.
1.Mineral Water/Pure Water Filling Production Line
2.Carbonated Drink Filling Production Line
3.Juice(with pulp)/Tea Drink Filling Production Line
4.3/5 Gallon Barrel Water Filling Production Line
5.Semi-auotomatic/Full-automatic PET Bottle Blowing Machine
6.Water treatment,Bottle Unscrambler,Sterlizer and all kinds of auxiliary equipment.
Profession in handling all kind of beverage line turnkey project!
Hotline/Whatsapp/Imo:0086 183 5170 0776
Welcome inquiry and visiting us! Contact us if you need more details on Semiauto Matic Blowing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pet Bottle Making Machine、Blow Moulding Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Blow Moulding Machine
