Home > Products > Blow Moulding Machine > Cheap Price Drinking Water Making Machine

Cheap Price Drinking Water Making Machine

Product Description

Semi-Automatic  PET Bottle Blowing Machine
Cheap Price Drinking Water Making Machine

Introducton:
Semi-automatic  PET Bottle Blowing Machine  is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
Function:
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers
Main Parameters:

ContainerProduct materialPET
Volume0.1L-2L
Theoretical output1200-1600PCS/H
Preform length15mm-350mm
Preform inner diameterφ5mm-38mm
MouldingMax.mould plate Dimenstion(L x W)350x380mm
Max.mould thickness180mm
Clamping force45KN
Mould opening stroke160mm
Machine size and weightMain machine (L x W x H)160x60x161KM
Main machine weight500Kg
Heater (L x W x H)187x63x145KM
Heater weight250Kg
Power17.5kw
V.Service:
We will provide whole drawing for bottle mould. Free charge for design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. The buyer pays the round air tickets and 70usd as salary per person per day.
VI.Delivery time:
30 days upon deposit and approval to the bottle drawing.
VII. Payment:
For machine: 30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% will be paid before shipmment.
VIII. Guarantee:
We response for 12 months warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.  And send engineer to client's company, help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.
IX. After sales service:
We will solve the problem by phone first ,and send the spare parts by DHL,Or if you need engineer in your factory ,you need pay travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.

1.Mineral Water/Pure Water Filling Production Line
2.Carbonated Drink Filling Production Line
3.Juice(with pulp)/Tea Drink Filling Production Line
4.3/5 Gallon Barrel Water Filling Production Line
5.Semi-auotomatic/Full-automatic PET Bottle Blowing Machine
6.Water treatment,Bottle Unscrambler,Sterlizer and all kinds of auxiliary equipment.

Company Information:

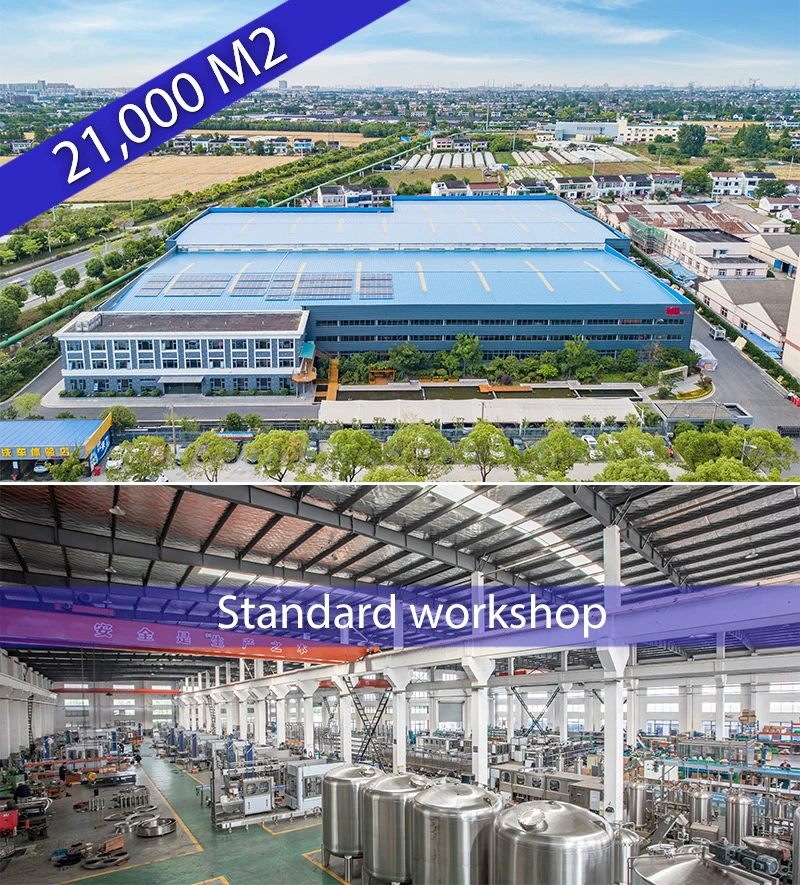

Standardized workshop of total 21,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.

The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.

Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.

Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
Cheap Price Drinking Water Making Machine

   Zhangjiagang King Machine Co., Ltd. is a professional manufacturer of beverage machinery in China.It is located in Zhangjiagang City very closed to Shanghai with beautiful scenery and convenient transportation.With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to tens of countries such as Turkey, Poland, Uzbekistan, Malaysia, Indonesia and Egypt.Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also aerosol Filling Machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.Every year we will attend the exhibition, like Russia, Malaysia, Dubai, Mexico , Venezuela, Saudi Arabia and Algeria and etc, That time We always visit some local old customers and we are sure that we can offer more and better services than other supplier.We warmly welcome customers all over the world visit our manufacture,.

Cheap Price Drinking Water Making Machine


Our Services:
1. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
2. 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
3. 12 Months guarantee and life-long technical support.
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back to us if you got any questions.
Cheap Price Drinking Water Making Machine

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Cheap Price Drinking Water Making Machine

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.
Cheap Price Drinking Water Making Machine

Profession in handling all kind of beverage line turnkey project!
Please feel free to contact with me:
Zhangjiagang King Machine Manufactory Co.,Ltd
Add: NO.22 East Seven Road Donglai Town, Zhangjiagang City, Jiangsu Province, China
website:

Contact us if you need more details on Semiauto Matic Blowing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pet Bottle Making Machine、Blow Moulding Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Blow Moulding Machine
