New Condition and Bottle Application Blow Molding Machine
Product Description
New Condition And Bottle Application Blow Molding Machine1.Description:2-cavity automatic stretch Blow Moulding Machine
can make water bottles. Carbonate drink bottles. And tea /milk bottle/Jar/candy jar And other pet container.
2.Flow

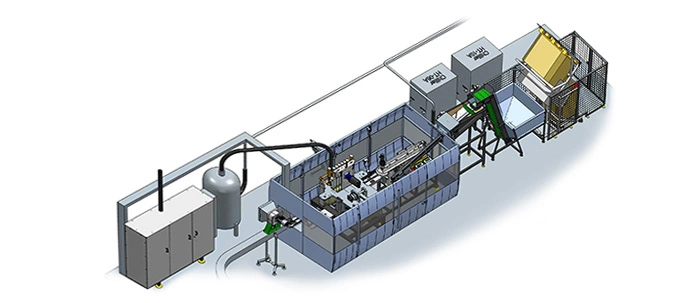

Machinery working diagram
High pressure compressor → air tank → air filter
↓
Air filter
↓
Air cooling dryer
↓
Pet Preform → preform loader→ blow moulding machine ← →water chiller
↑↓
blowing mould → pet bottles
3.Patameter
Contact us if you need more details on Blow Molding Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bottle Application Blow Molding Machine、Water Bottle Blowing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
can make water bottles. Carbonate drink bottles. And tea /milk bottle/Jar/candy jar And other pet container.
2.Flow
Machinery working diagram
High pressure compressor → air tank → air filter
↓
Air filter
↓
Air cooling dryer
↓
Pet Preform → preform loader→ blow moulding machine ← →water chiller
↑↓
blowing mould → pet bottles
3.Patameter
KM-A2L | KM-A4L | KM-A6L | KM-A8L | |
Model No. | ls2C2L/F | JN-4C2L/F | JN-6C1L/F | JN-8C1L/F |
Theoretical Output | 2000pcs/hr | 4000pcs/hr | 6000pcs/hr | 8000pcs/hr |
Max.Container Volume | 2.0L | 2.0L | 2.0L | 0.8L |
Max.neck Diameter | 45mm | 45mm | 45mm | 45mm |
Max.Container Diameter | 100mm | 100mm | 100mm | 76mm |
Max.Container Height | 340mm | 340mm | 340mm | 270mm |
Number Of Cavity | 2 Cavity | 4 Cavity | 6 Cavity | 8 Cavity |
Total Power | 25kw | 35kw | 45kw | 65kw |
Use Power | 12kw | 20kw | 30kw | 40kw |
Working Pressure | 1.0Map | 1.0Map | 1.0Map | 1.0Map |
Low Pressure Consuming | 1400L/min | 1600L/min | 16000L/min | 1600L/min |
Blowing Pressure | ≤3.0Mpa | ≤3.0Mpa | ≤3.5Mpa | ≤3.5Mpa |
High Pressure Consuming | 1200L/min | 2400L/min | 3600L/min | 4200L/min |
Machine Dimension | 1.9×1.6×2.0m | 2.5×2.0×2.0m | 4.2×2.0×2.0m | 6.9×2.0×2.0m |
Machine Weight | 1300kg | 2200kg | 5000kg | 6500kg |
Feeding Machine Dimension | 2.0×1.0×2.0m | 2.0×1.0×2.0m | 2.0×1.2×2.2m | 2.0×1.2×2.2m |
Feeding Machine | 200kgs | 220kgs | 300kgs | 300kgs |
Contact us if you need more details on Blow Molding Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bottle Application Blow Molding Machine、Water Bottle Blowing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
