Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine

Product Description

Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine
Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine
Introduction:
Full-automatic PET bottle blow molding machine is the most stable two-step automatic stretch Blow Moulding Machine.PET bottle blowing machine has two cavities to six cavities and the maximum volume of the products is 2000ml. the speed is 1000 bottles per hour per cavity (based on 500ml bottle). PET bottle machine can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Adavantage:
1)Stable performance with advance PLC
2)Automatic preform conveyor to save human cost
3)Prefrom self-rotation and infrared pre-heater revolution assure the even distribution of heat ,which improve the bottle shaping rate,increase the production
4)High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC ,Which could adjust the temperature of the infrared lights in the pre heater ,and keep the proper temperature and humidity invariable
5)High safeties with security automatic-locking device in each mechanical action ,which will make the production into a perfect safe enviroment ,in case of the bearkdown in certain prodcedure .
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
Technical parameters:
ModelItem KM-A2KM-A4KM-A6
Productivity  1800-2000pcs3200-4000pcs5000-550pcs
Product typeVolume0.1-2L0.1-2L0.1-2L
Body diameter<100mm<100mm<100mm
Height<310mm<310mm<310mm
Neck diameter28-30mm28-30mm28-30mm
MouldCavity246
Mold thickness240mm240mm240mm
Mold volume260*240*370mm510*240*370mm640*240*360mm
Main machine powerElectrical source powerBy customer order
Rated power25kw49kw73kw
Really use power6.5kw13kw25kw
Air system HP air compressor2.4/30kg3.2/30kg6.4/30kg
LP air compressor1.0/30kg1.6/30kg2.0/30kg
Air tank 0.6/30kg0.6/30kg1.0/30kg
Air dryer2.0/30kg2.0/30kg6.0/30kg
Cooling water3hp3hp5hp
MachineSize1900*1280*1930mm2300*1800*1930mm4300*2000*1930mm
Weight2000kg3600kg4800kg
Preform unscramblerSize2000*950*2480mm2000*950*2480mm2000*950*2480mm
Weight250kg250kg250kg

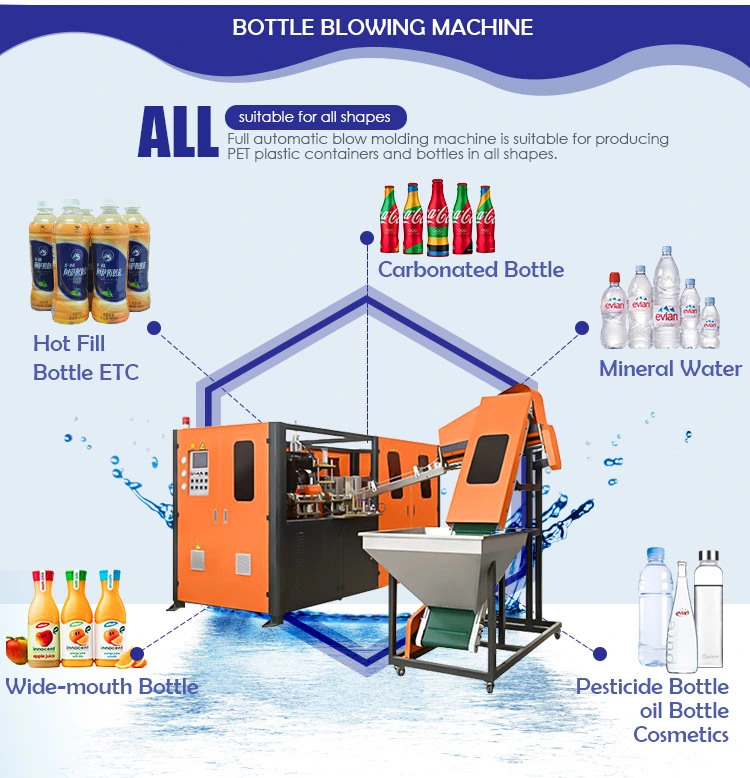

Photos:
Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine
Customer List:
Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine
Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine

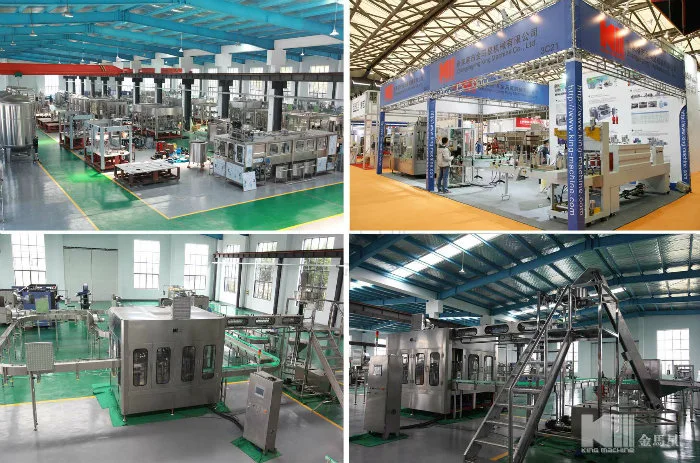

Company introduction:
Zhangjiagang king machine Co., Ltd .was founded at 1995,and starting with beverage machinery.It is located at Zhangjiagang city ,We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .our Main products including: Pure/mineral water and purified water producing line. carbonated beverage producing line. 3gallons& 5gallons producing line. Flat and tube UHT device, and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Automatic 2 / 4 / 6 / 8 Cavities Bottle Blowing Machine


Contact us if you need more details on 4 Cavities Bottle Blowing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 6 Cavities Bottle Blowing Machine、Bottle Blowing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
